Manually adjusting heavy forks is difficult and dangerous, especially on larger forklifts with lifting capacities over five tonnes. Fork positioners address several key issues:
Improves Safety: Reduces the risk of accidents and crushed fingers from manual fork adjustment.
Increases Efficiency: Allows quick adjustment for different load sizes, preventing fatigue and workflow disruptions from frequent dismounting.
Enhances Stability: Enables operators to easily set the widest, most stable fork base for the load.
Eases Operation: Makes the process much easier for the operator, even on smaller machines.

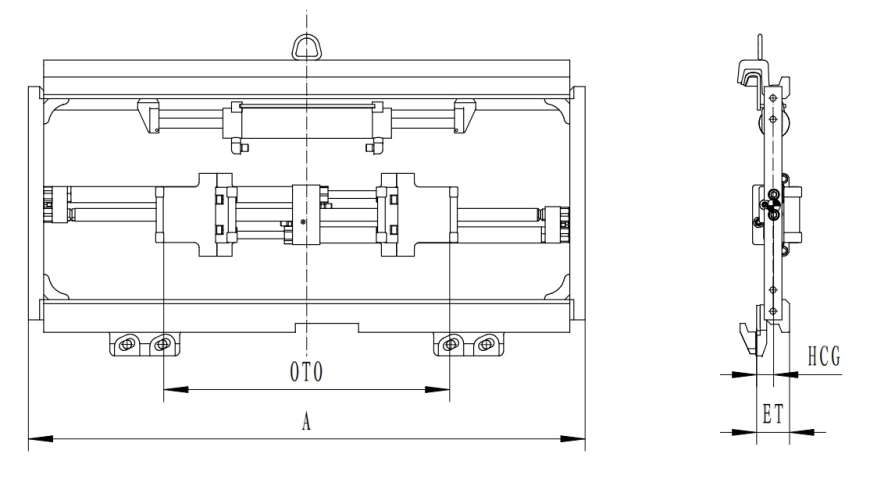

| Capacity@ Load Center |
Model | Installation Type |
Fork Mounting Class |
Carriage Width |
Sideshift | Opening Range |
Weight | Effective Thickness |
Horizontal Center of Gravity |
| (kg@mm) | A (mm) | (mm) | OTO (mm) | (kg) | ET (mm) | HCG (mm) | |||
| 2500@500 | FP-25M-A002 | ISO 2 | ISO 2A | 1040 | 0 | 300-990 | 66 | 59 | 30 |
| 3500@500 | FP-35M-B001 | ISO 3 | ISO 3A | 1100 | 0 | 300-1050 | 85 | 64 | 30 |
| 2500@500 | FPS-25M-A002 | ISO 2 | ISO 2A | 1040 | 100 | 300-990 | 66 | 59 | 30 |
| 3500@500 | FPS-35M-B001 | ISO 3 | ISO 3A | 1100 | 100 | 300-1050 | 95 | 64 | 30 |
| Capacity@ Load Center |
Model | Installation Type |
Fork Mounting Class |
Carriage Width |
Sideshift | Opening Range |
Weight | Effective Thickness |
Horizontal Center of Gravity |
| (kg@mm) | A (mm) | (mm) | OTO (mm) | (kg) | ET (mm) | HCG (mm) | |||
| 4500@500 | FPS-50M-B018 | ISO 3 | ISO 3A | 1250 | 100 | 420-1180 | 300 | 66 | 33 |
| 6600@600 | FPS-70M-C018 | ISO 4 | ISO 4A | 1250 | 150 | 420-1180 | 380 | 77 | 65 |
| 6600@600 | FPS-70M-C010 | ISO 4 | ISO 4A | 1700 | 150 | 420-1630 | 500 | 77 | 65 |
| 7000@600 | FPS-70M-C002 | ISO 4 | ISO 4A | 1845 | 150 | 420-1780 | 550 | 76 | 80 |
